Porsche Heritage & Museum Reunites Walter Röhrl and the 924 Carrera GTS Rally

Shhh! This project is secret! Or at least it was. Forty years after the 1981 rally season in which Walter Röhrl raced a 924 Carrera GTS, the Porsche Heritage and Museum department surprised the two-time World Champion with the newly restored car.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

On 15 May, the 924 Carrera GTS Rally and Walter Röhrl celebrate an anniversary: 40 years ago, Röhrl and co-driver Christian Geistdörfer rolled off the starting ramp at the International ADAC Metz Rally 1981 in the gold and black 924 ‘Monnet’ – marking the start of the first and only rally season in which Röhrl competed for Porsche. This year in the German Rally Championship ended with four overall victories. Vehicle faults caused problems for the Porsche team in the first of seven races, the Metz Rally in the May of 1981, but the performance was still good enough to finish in second place in the overall standings. Röhrl and Geistdörfer were then victorious in the Hessen Rally, and three more wins followed in the Serengeti Safari Rally, Anterior Palatinate Rally and Baltic Rally.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

Röhrl and Geistdörfer moved to Opel the following year, while the 924 Carrera GTS had its last race outing at the Boucles de Spa Rally in February 1982. This time, racing driver Jacky Ickx was behind the wheel of the car, which had the starting number four. On 27 August 1982, the ‘924 GTS test car’ was handed over to the museum. After the car returned to the factory, the Blue livery applied for the cigarette brand Gitanes for the rally in Belgium was replaced by the original gold and black paintwork of the cognac producer Monnet. The car’s technology and paintwork remain unchanged up to the present day.

The goal was to preserve the traces of time and the special stages it completed on asphalt and gravel. Restoration of the museum piece took place in the same location where the car was built 40 years ago: in the historic motor racing department in Weissach.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

Most expensive production Porsche of all time

The rally car was based on the 924 Carrera GTS – the most expensive car in the model range in 1981 with a price of 110,000 marks, and the most expensive production Porsche of all time up to that point. With the Carrera models from the 924 series, Porsche proved that the transaxle concept could also be successful in motorsport. The 924 Turbo (Type 931) provided the basis for further development. The enhanced 210-PS 924 Carrera GT (Type 937) was presented in June 1980 and was homologated for Group 4. Its more powerful development version was the 924 Carrera GTS (Type 939). The standard GTS delivered 240 PS and the Clubsport variant 275 PS, while the GTR designed exclusively for race track use achieved an output of 375 PS. The production runs remained small: between February and April 50 left-hand-drive 924 Carrera GTS cars were built, all painted in the colour Guards Red. Including all the prototypes, a total of 59 cars were produced.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

Test car No. 5

The 924 Carrera GTS Rally built on 12 December 1980 was also one of the pre-series vehicles, and was the fifth of nine prototypes built. Its two-litre four-cylinder turbo engine was also a test unit: it was an engine without a serial number, which survived a complete rally season without damage in 1981, and still propels the gold and black 924 to outstanding performances in 2021. It has 10,371 kilometres on the clock today.

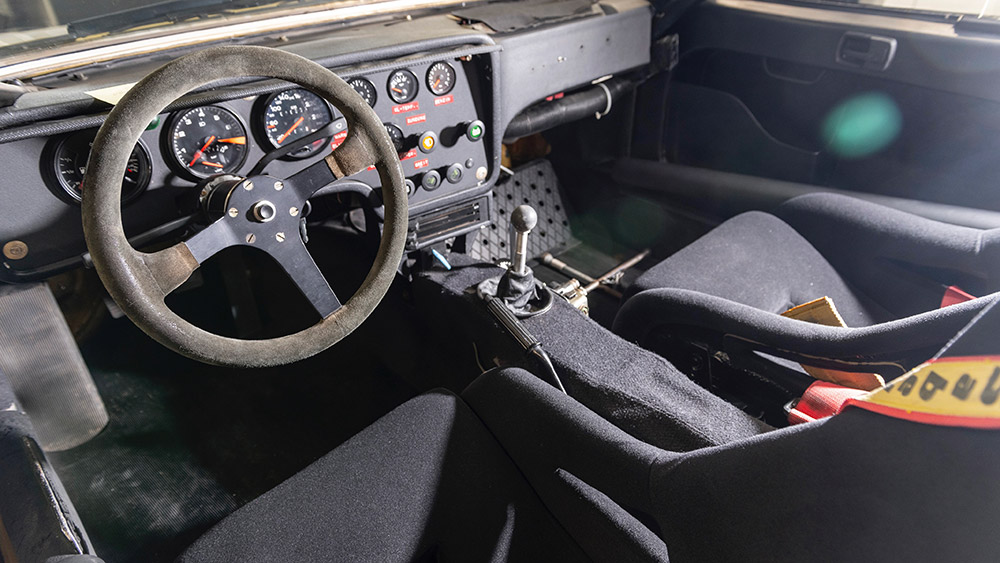

The focus of the restoration was ensuring complete originality down to the very last detail and also preserving the car’s patina. Even the slightly sun-faded red seat belt harnesses under the large glass dome are still the originals. A large ‘R’ is embroidered on the harness on the driver side, and the initials ‘CG’ feature on the passenger side: Röhrl and Christian Geistdörfer.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

The patina must be preserved

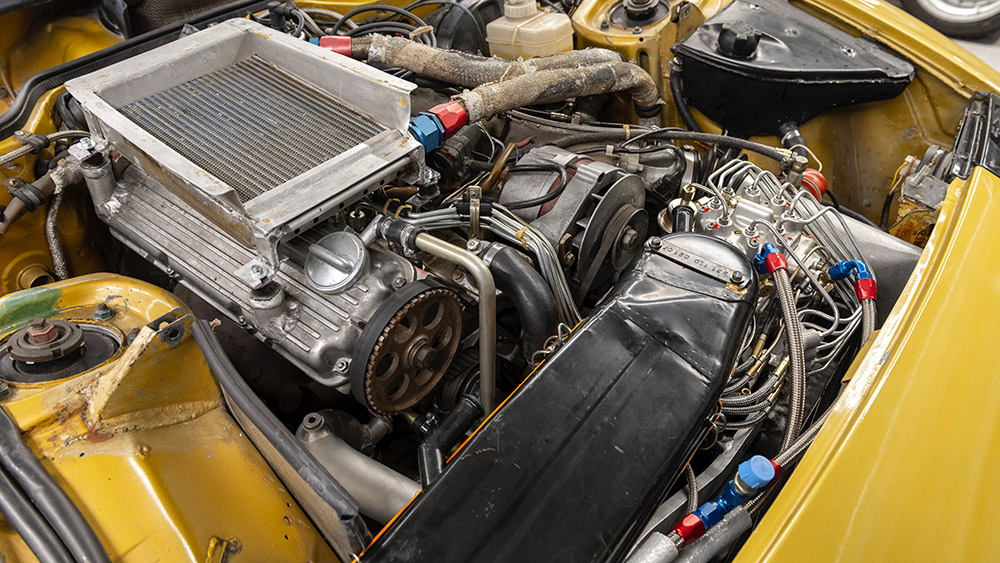

Apart from wearing parts, a number of chassis components and the fuel supply system, the existing components were overhauled, rebuilt and installed again without exception during the restoration process – from the original 911 Turbo brake callipers through to the charge-air cooler with hand-welded housing. An endoscopic examination of the engine and connected KKK 26 turbocharger did not produce any findings, while the gearbox was dismantled and checked for safety reasons but showed hardly any signs of wear. What is more, the Porsche Museum workshop had a race clutch in stock to complete the drivetrain, and the supplier Pirelli also had a set of tyres in the size 255/55 R15 with the tread from the time.

The car still bears the handwriting of those who built it. When carrying out the work, the Weissach specialists were able to call on the experience, know-how and complete vehicle documentation of a former colleague: Roland Kussmaul. A test driver, engineer and a rally driver himself, he built the car within two months for the German Rally Championship in 1981, while Schmidt Motorsport from Nuremberg was responsible for service work during the race outings.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

The special features of the 924 in rally trim included the rear-axle links laminated in glass-fibre plastic for protection against stone damage, thick metal plates on the underbody to protect the oil pan and gearbox, as well as the fuel distributor from the V8 engine in its big Type 928 relation, which ensured the fuel supply to the engine at high engine speeds. The dry sump for the oil supply was located at the rear and was filled through an opening next to the luggage compartment lock.

Maximum secrecy

“The biggest problem in recommissioning the car,” says Kuno Werner, head of the museum workshop, “was not the technology, but keeping it secret.” The plan was that the 924 Carrera GTS should turn up at the front door of the two-time World Rally Champion on his 74th birthday. “But Walter Röhrl knows so many people here that it was difficult to keep the project quiet.” But the rally revival was completed successfully: at the beginning of March, the team from the Porsche Museum and Roland Kussmaul surprised Röhrl with the roadworthy ‘Monnet’ Porsche on his birthday.

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

“It was a huge surprise for me. I stepped out of the car 40 years ago and haven’t sat in it again since. So I was astonished when Roland showed up all of a sudden in this car,” says a delighted Walter Röhrl. “This car opened the door to Porsche for me. That is why I feel a particularly close bond to it. For me, it’s a journey back in time. I immediately feel 40 years younger.”

Turbocharging was new 40 years ago. And also unaccustomed, as Röhrl remembers when driving on the roads of his usual route through the Bavarian Forest. “As a driver of cars with naturally aspirated engines, the characteristics of turbocharged engines drove you mad. The turbo lag was enormous! In order to drive out of bends quickly, you had to accelerate again shortly before the bend and keep the engine speed high.”

Walter Röhrl and the Restored 924 Carrera GTS Rally
Reunion after 40 years: Walter Röhrl and the 924 Carrera GTS Rally

The newly formed Porsche team did not expect that they would really have any chance against the established competition in 1981. Just finishing was the primary objective. “But the car was fast right from the start,” continues Röhrl. “At the beginning we had around 250 PS, later also more – but the strengths of the 924 were its handling and traction, not the power. And everything kept working. That is typical for Porsche.” The surprise was a great success.

By: Porsche | Photos Courtesy of: Porsche
