BMW unveiled the all-new 2018 BMW M5, a car that since 1984 has been regarded as the quintessential high-performance sports sedan. The previous generations of the BMW M5 all possess purebred racing genes and acquitted themselves impressively on the racetrack as well as on the road. The all-new BMW M5 represents the 6th generation and, like those that have come before it, delivers on these promises – and more. The all-new 2018 M5 will also debut the M-specific all-wheel-drive system, M xDrive. This new system allows the M5 to reach new heights of dynamic performance and delivers poise in all driving situations. Frank van Meel, Chairman of the Board of Management at BMW M GmbH, explains the benefits of this pioneering drivetrain technology: “Thanks to M xDrive, the all-new BMW M5 can be piloted with the familiar blend of sportiness and unerring accuracy both on the racetrack and out on the open road, while also delighting drivers with its significantly enhanced directional stability and controllability right up to the limits of performance when driving in adverse conditions such as on wet roads or snow.” When the engine is first started, the all-new BMW M5 will be in all-wheel-drive mode (4WD) with Dynamic Stability Control (DSC) turned on. The driver is then able to vary the handling characteristics of the M5 by enabling various driving dynamics modes, including a rear-wheel-drive mode with no DSC. In this 2WD mode, the all-new BMW M5 offers drivers the opportunity to experience BMW’s traditional rear-wheel drive characteristics.
Under the hood of the all-new BMW M5 is the latest and most advanced version of the renowned 4.4-liter V8 engine featuring M TwinPower Turbo technology with an output increase from the previous generation of 40 hp and 53 lb-ft, this new engine develops 600 hp and 553 lb-ft of peak torque to promise explosive acceleration and formidable performance. The twin-turbo V8 unit propels the M5 via the new 8-speed M Steptronic transmission with Drivelogic and teams up with the M xDrive system to transfer all of the high-revving turbocharged engine’s might to the road, and allows a 0–60 mph acceleration run in a mere 3.2 seconds, making it the quickest and most agile to date.
M TwinPower Turbo, M xDrive and the 8-speed M Steptronic transmission.
The all-new BMW M5 features a 4.4-liter V8 engine with M TwinPower Turbo technology. The high-revving power unit in the all-new BMW M5 has received a thorough overhaul and delivers its exceptional output of 600 hp from 5,700 to 6,600 rpm, while the tremendous peak torque of 553 lb-ft is on tap from just 1,800 rpm and remains constant all the way up to 5,700 rpm. The engine characteristics can be changed at the push of a button from the basic Efficient setting to either Sport or Sport Plus, resulting in a more crisp response to movements of the accelerator.
The M engineers have implemented a raft of enhancements to endow the twin-turbo V8 with its phenomenal performance capabilities. These include newly developed twin-scroll turbochargers now delivering 24.46 psi of relative boost pressure as well as a higher maximum injection pressure of 350 bar (up from 200 bar). This allows shorter injection times and improved atomization of the fuel for sharper engine response as well as more efficient mixture preparation. Improvements have also been made to the lubrication and cooling systems, including an oil pan with a small front sump and new indirect charge air cooling units, which are more effective than its predecessor despite being almost 20% smaller in size. The oil supply system uses a fully variable, map-controlled pump and has been designed for weekend escapades to the racetrack, where it can handle very high levels of longitudinal and lateral acceleration.
The reinforced drivetrain allows it to cope with the higher torque, the rear-biased configuration and the 2WD mode. While the transfer case intelligently splits the drive torque between the front and rear wheels, the Active M Differential is responsible for then distributing the drive flow between the rear wheels varying the locking effect as the situation demands. With M xDrive, stabilizing interventions from the DSC system are only required in extreme situations, enabling the engine’s tremendous power to be converted into propulsive force with virtually zero losses. The M xDrive system allows drivers to command the all-new BMW M5 with even greater precision and directional accuracy to respond sensitively and directly to the driver’s inputs, which in turn enable fewer steering corrections when driving at the limit.
The three modes available with the DSC system switched off have been configured keeping track driving in mind. The 4WD mode is set up for the greatest possible controllability and traction, and already offers plenty of scope for exploring the dynamic performance capabilities of the all-new BMW M5. The 4WD Sport mode, meanwhile, with its blend of steering precision, agile handling and reassuring traction, guarantees maximum enjoyment and consistent lap times. The pure rear-wheel-drive mode (2WD) has been designed with the experienced and highly skilled driver in mind. This opens up the same thrilling experience already offered by past generations of the M5.
Newly Developed chassis technology. A new benchmark in driving dynamics.
The precise, agile handling that drivers have come to expect from previous generations of the M5 has been optimized for the all-new car. Individual driver needs are met by the wide range of options for configuring the vehicle, including M xDrive, the 8-speed M Steptronic with Drivelogic, the M-specific Variable Damper Control (incl. three driving modes: Comfort, Sport and Sport Plus) with electronically controlled shock absorbers, and M Servotronic steering (incl. three driving modes: Comfort, Sport and Sport Plus). A top priority when tuning the chassis of the all-new BMW M5 was to achieve neutral steering behavior with linear build-up of transverse loads across the full range of lateral acceleration. Whatever the driving situation, the electromechanical M Servotronic steering delivers exactly the right amount of steering torque. This ensures that the all-new BMW M5 has accurate steering and always communicates clear feedback to the driver. What’s more, because of all of these systems the car is great for long-distance driving or touring along the city thanks to the low steering force required for maneuvering and parking.
The tires fitted as standard on the all-new BMW M5 (275/40 R 19 at the front and 285/40 R 19 at the rear) have been specially homologated for this vehicle. They are mounted on five-double-spoke cast light-alloy wheels in polished Orbit Grey (front: 9.5 J x 19, rear: 10.5 J x 19). 20-inch seven-double-spoke wheels in black or polished black are available as an option (front: 275/35 R 20, at rear: 285/35 R 20). All wheels are ZR speed rated, making them suitable for the 189 mph top speed achieved with the available M Driver’s Package (155 mph standard).
The all-new BMW M5 comes with M compound brakes fitted as standard. Being significantly lighter than conventional cast iron units, these have the distinct benefit of reducing unsprung mass. At the front, the braking force is applied to 15.55 x 1.41 [in] perforated, inner-vented brake discs by blue-painted 6-piston fixed calipers featuring the M logo. Single-piston floating caliper brakes see duty at the rear on 14.96 x 1.10 [in] perforated, inner-vented brake discs, with integrated parking brake.
M carbon-ceramic brakes are also available as an option on the all-new BMW M5. These brakes are instantly recognizable from the gold-colored calipers with M logo 6-piston fixed calipers and 15.74 x 1.49 [in] ventilated brake discs at front; single-piston floating calipers and 14.96 x 1.10 [in] ventilated brake discs at rear, resulting in 50.7 lb reduction of unsprung and rotating masses. This offers many benefits, including improved driving dynamics and increased suspension comfort. More importantly, the M carbon-ceramic brakes provide even better braking performance than M compound brakes, as well as improved fade resistance and even higher thermal stability.
Sporting M design with distinction. Form driven by function.
“The BMW M5 has always embodied the perfect blend of mature business sedan and high-performance components. So you can think of the BMW M5 as the world’s fastest-moving tailored suit.” These are the words chosen by Domagoj Dukec, Vice President of Design BMW i and BMW M, to sum up the brief for the all-new BMW M5. Like all the models to come out of BMW M GmbH HQ in Garching, its design is M-specific and driven by function. For example, the newly designed front bumper trim, with its larger air intakes, has the task of providing the cooling systems and brakes with the adequate supply of cooling air – even in rigorous use on the racetrack. The car has a wider track than its predecessor, and the front side panels (made from aluminum to reduce weight) bear the signature M gills.
Also carved from aluminum is the hood, whose precise lines create an eye-catching sculpture and extend visually into the roof. For the first time in the BMW M5, the roof itself is made from extremely lightweight, high-strength carbon fiber-reinforced plastic (CFRP).

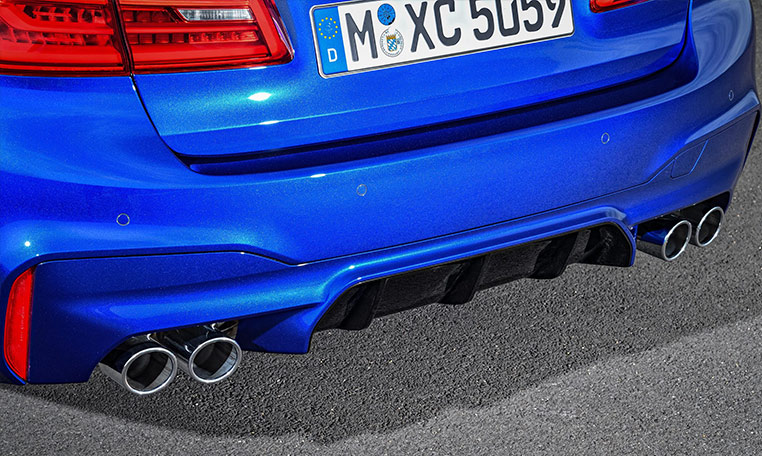

The redesigned rear diffuser, side skirts, the M rear apron and M rear spoiler, play their part in giving the all-new BMW M5 its powerful sporting appearance, and the exterior mirrors have a dynamic, M-specific design. In another example of form following function, the hexagonal central air intake in the front end not only separates itself sculpturally from the side air intakes, it also incorporates the oil cooler.
The interior focuses squarely on the driver for absolute control in all driving situations. At the same time, the BMW M5 offers space for up to four passengers, a large trunk and excellent ride comfort. As a high-performance sports car and business sedan in one, it blends the best of both worlds.
The driver is at the heart of the action. Equipment without compromise.

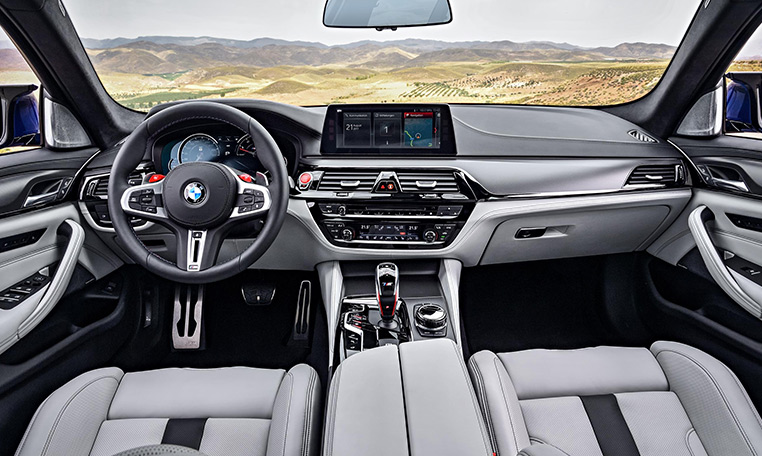

When it comes to the equipment on board the all-new BMW M5, dynamic driving experience is king. The center-point is the driver’s seat, from where all switches and buttons can be operated with optimum ergonomic convenience. All of the car’s functions are located directly in the driver’s eye line. The large digital instrument cluster from the BMW 5 Series has an M-specific design and keeps the driver informed on the driving dynamic mode, M xDrive all-wheel-drive system setting and Drivelogic option currently engaged. Key elements for the sporty driver are the variable rpm pre-warning field and shift lights that show the best time to shift gears. This data can also be reflected into the M-specific Head-Up Display.

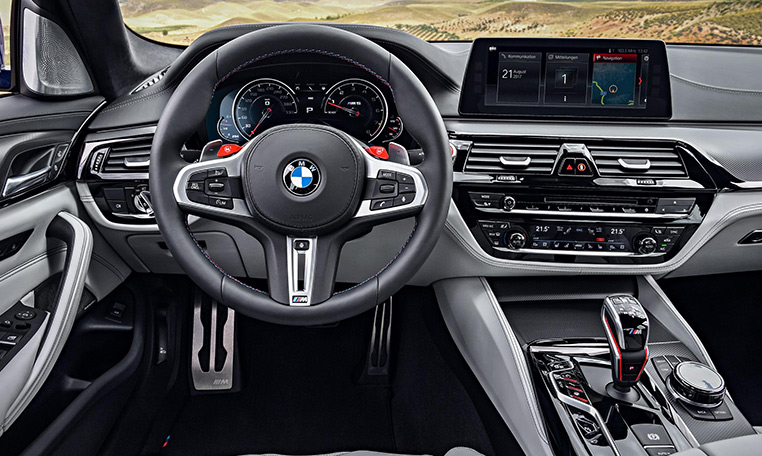

Virtually all of the driving dynamic systems can be configured using the central touchscreen display, buttons on the center console or M sports steering wheel, and the central information display offers BMW Gesture control. The M5’s engine is brought to life by pressing the red starter button. Among the essential features for drivers wanting to customize the driving dynamics are the new two red-painted M1 and M2 buttons next to the gearshift paddles on the M multifunction steering wheel, which allow drivers to configure two individual set-ups. These include their choice of M xDrive, DSC, engine, transmission, damper and steering characteristics, as well as the appearance of M view in the Head-Up Display.
The all-new BMW M5 is trimmed with Extended Merino leather as standard. The driver and front passenger settle into M Multifunction seats with electric adjustment, seat heating and electric adjustment for the seat depth, and pneumatic backrest width adjustment deliver optimum lateral support. The M Multifunction seats feature integral head restraints that provide even better support in the shoulder area, an illuminated M5 logo and extended functions. With their racing-style bucket shape and the thicker side bolsters of the seat surface and backrest, the M multifunction seats offer even greater lateral support. For the first time, the M5 is now also available with all the driver assistance systems featured in the new BMW 5 Series.
The BMW M5 First Edition. Limited-run special edition with exclusive specification.
First come, first served is the motto as BMW M GmbH launches the all-new BMW M5 with the option of a “First Edition” special-edition model limited to a worldwide run of 400 examples with 50 units coming to the US. The 2018 BMW M5 First Edition will be available starting spring of 2018 with pricing announced closer to market launch.
The all-new BMW M5 First Edition has exclusive Frozen Dark Red Metallic paintwork and includes BMW Individual high-gloss Shadow Line trim with extended features. This means that the kidney grille, the M gills and the four tailpipes of the sports exhaust all come in high-gloss black. The M5 First Edition is fitted as standard with 20-inch seven-double-spoke light-alloy wheels in black.
The BMW M5 First Edition also has an individual flavor inside. The Piano Finish Black applications are complemented by a plaque on the center console indicating the car’s production number (“M5 First Edition 1/400”), pointing to the exclusivity of this BMW M5. The M5 First Edition comes as standard with high-quality M multifunction seats. It is also available with full-leather upholstery in Smoke White with red contrast stitching.
